COUCH/SEMI-COUCH SAFETY ERGOMETER
SanaCardio 1000
The development of the SanaCardio 1000 is based on the technology of the SanaCouch 1000 couch/semi-couch safety ergometer.

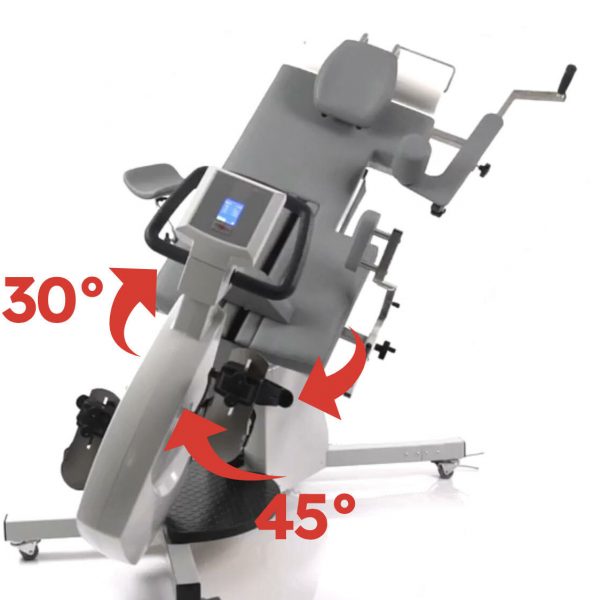

Thanks to an additional pivot axis of the couch, the patient can be positioned in an angle of up to 30 degrees to the left during exercise. This ensures a particularly favourable position for high-quality ultrasound images during stress echocardiography.
Reclining position 0° – 45°
Tilt to left 0° – 30°
Well suited for ultrasound examinations
Quiet mechanism even at high speed
Very stable, even in heavy patients
Safety first – with precise measurements.
Specially developed for patients with suspected problems of the cardiovascular system during exercise, after a heart attack or bypass surgery.
The use of a reclining/semi-reclining safety ergometer is also recommended for examining the elderly and disabled. Lying at a 45 degree position is found to be very comfortable. Studies in occupational medicine prove that the power output in this position also corresponds to that on a bicycle ergometer.

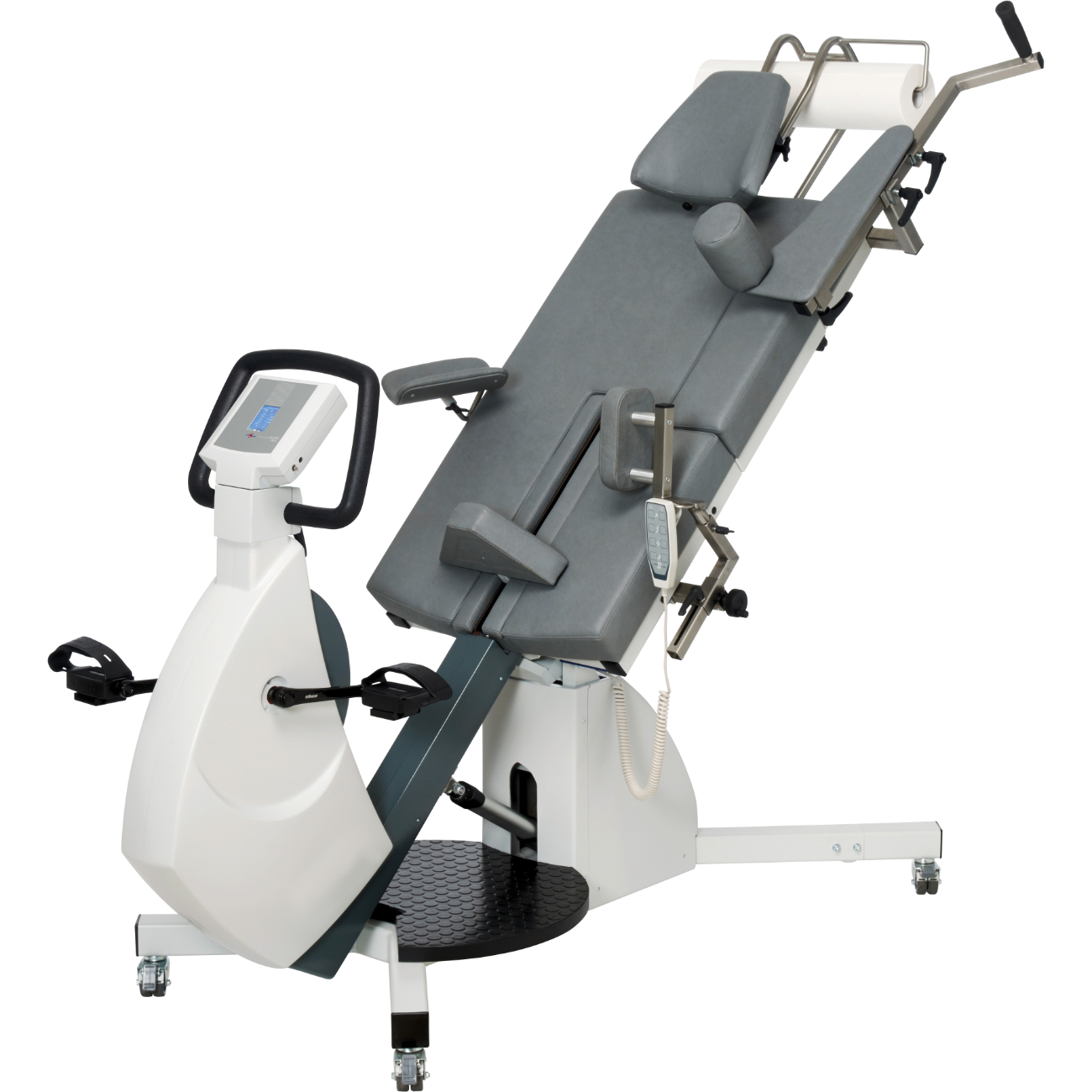

Discover the SanaCardio 1000
Designed to last.
Robust steel construction
Measuring element can be rotated through 180°
Touch Screen Display – Stress data (such as SpO2, HR, RPM) are displayed directly
SpO2-Connector (optional)
Blood pressure measurement with QRS trigger (optional)
Connection via Bluetooth or RS-232 wire
Grab handle 360° adjustable with solid grip surface
High stability with maximum mobility with wheels
High load accuracy: 20 – 999W
Easy leveling, small space requirement
Large step plate with low entry for comfortable sitting
Seat cushion adjustable
Headrest adjustable
Arm rest (optional) for comfortable blood pressure measurement
Arm rest (optional) for comfortable blood pressure measurement

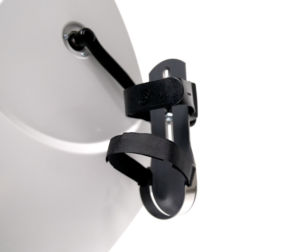

Strong and pleasant pedal fixation
A closer look to the details
Infinite movability and adjustability via remote control
Thanks to the couch’s infinite movability (0-45°), it is possible to find the ideal lying position for every patient and examination method. In case of incident, the patient can be moved immediately into a suitable treatment position. The patient’s calm position enables high quality ECG presentation and blood pressure measurements. The height is fixed by means of an adjustable saddle, which also prevents the patient from sliding to the side. The patient’s comfort is increased by a headrest. Both elements as well as the couch’s slope can be adjusted via remote control. The reclining position at 45° is very comfortable. Medical exercise examinations have proven that the performance in this position corresponds to the performance on a bicycle ergometer. Unlike with previous couch ergometers, the pedalling movement of the legs is now identical to the movement on a bicycle ergometer. This is due to the unique design of the pedal crank shaft. This feature eliminates all performance-related obstacles in couch-ergometry.
- Drag to see perspectives
Comfortable loading unit
The speed-independent load is granted by a high-end eddy current brake with computer-controlled torque measurement. This control, together with the ideal centrifugal mass dimensioning, results in a very pleasant pedalling feeling, allowing the patient to fully exploit his or her reserves. The mechanism, consisting of state-of-the art components, runs almost noiseless, even at high speed.
User-friendly control centre
The computer-controlled electronic high-end control centre is situated in the measuring head of the SanaCardio 1000. The measuring head’s front-side features the control elements and a backlit graphic high-resolution LCD display. Its side, containing the display, is usually oriented towards the person operating the device. This is why an LED speed display is mounted on the head’s upper side, clearly visibile for the patient. If the device is used in the rehabilitation or training sector, the measuring head can easily be turned around to allow view on the display and control unit.
EasyTouch
LCD Display
Features
Comprehensive ergometry for cardiopulmonary diagnostics.
Thanks to the modern computer-controlled electronics of the SanaCardio 1000, all common load controls can be carried out using an external master device. The load can also be changed manually in steps of 5 watts on the touch display.
